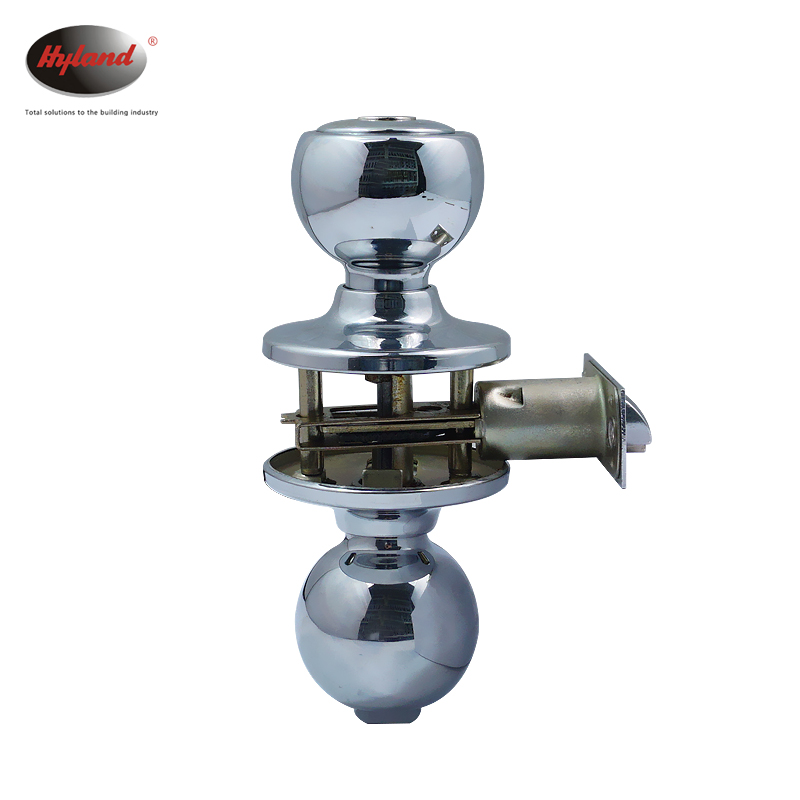

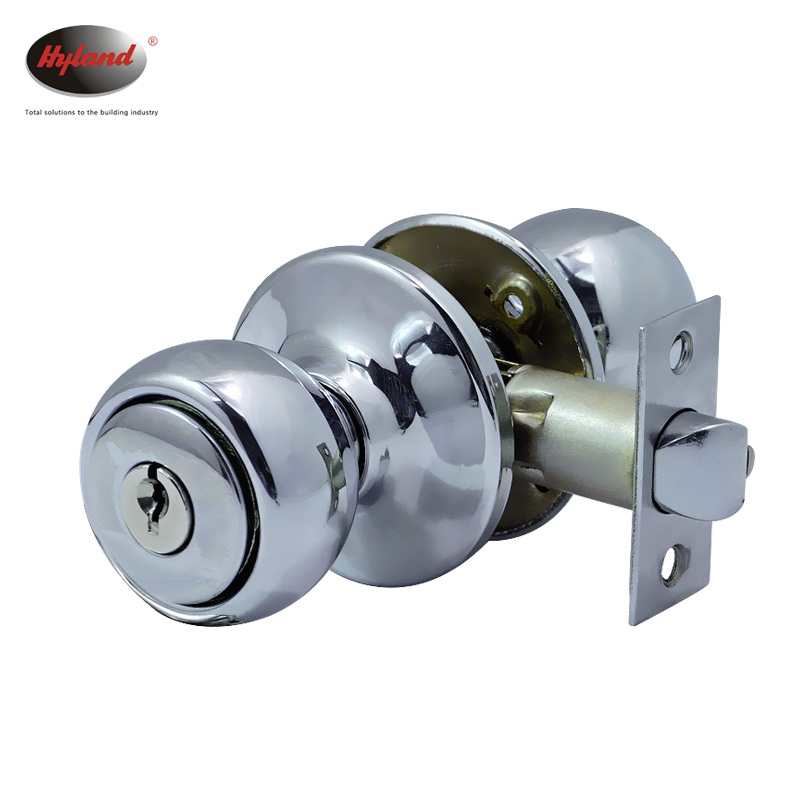

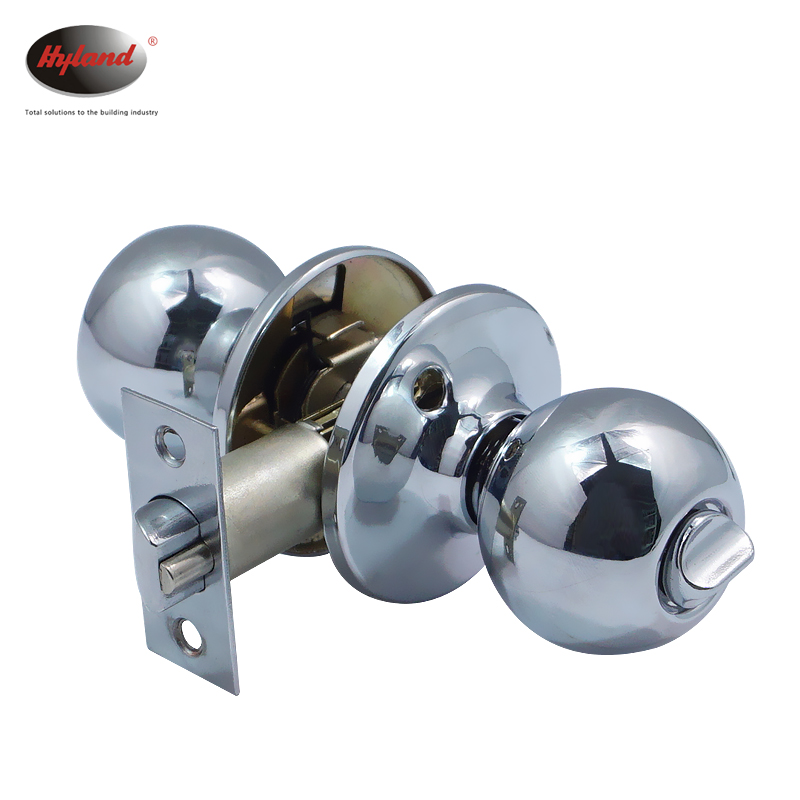

MODEL:575 CPET

Tubular Lock

Material:Stainless Steel

Handing:Fully reversible for left or right hand door

Cylinder:Brass cylinder

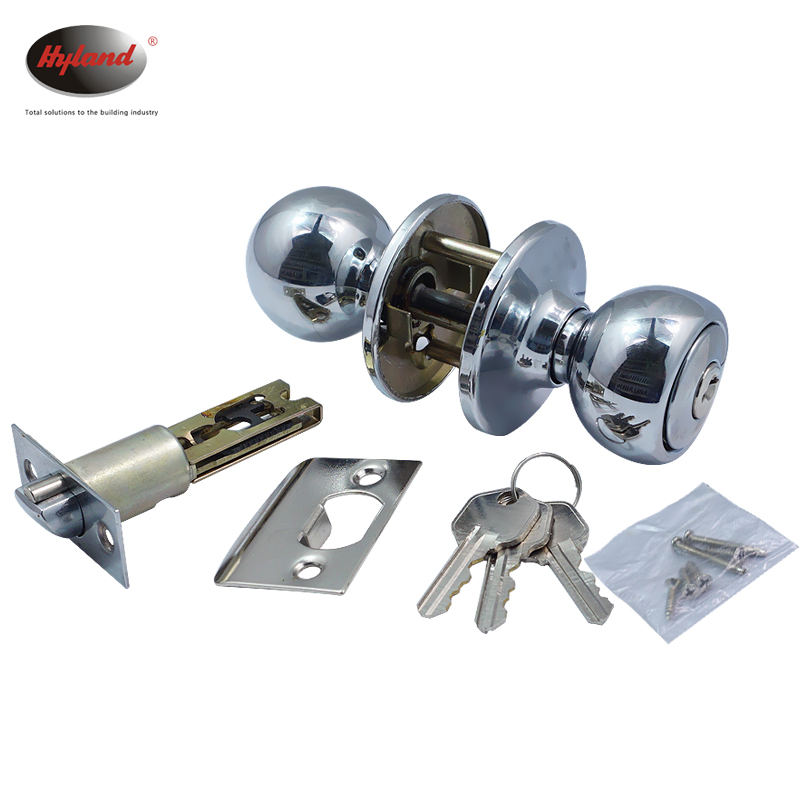

Key:3pcs brass key

Finish:AB/AC/PB/SB/SS/SP/SC,other available

Quality Standard:ANSI GRADE 3

Used:residential use

Introduction

* Tubular lockset is an economical and easy to install product particularly adaptable for residential use.

* Guaranteed for over 200000 life cycles.

* Can be keyed alike with deadbolts to improve security.

* Can be master keyed in a simple combination for family and facility use.

* Solid steel chassis and latch case, zinc plated for corrosion resistance.

* Exposed trim is made of either wrought stainless steel or brass.

* 2-piece reinforced knob as standard, esthetic 1-piece knob available upon request.

* The key or thumb-turn locks and unlocks both knobs.

* Turning the inside thumb-turn counter- clockwise or the key clockwise will lock both knobs. Turning in opposite direction will unlock knobs.

Features

*  Latch Bolt

  1/2＂（12mm）throw latch extension.

  Dead locking for keyed functions.

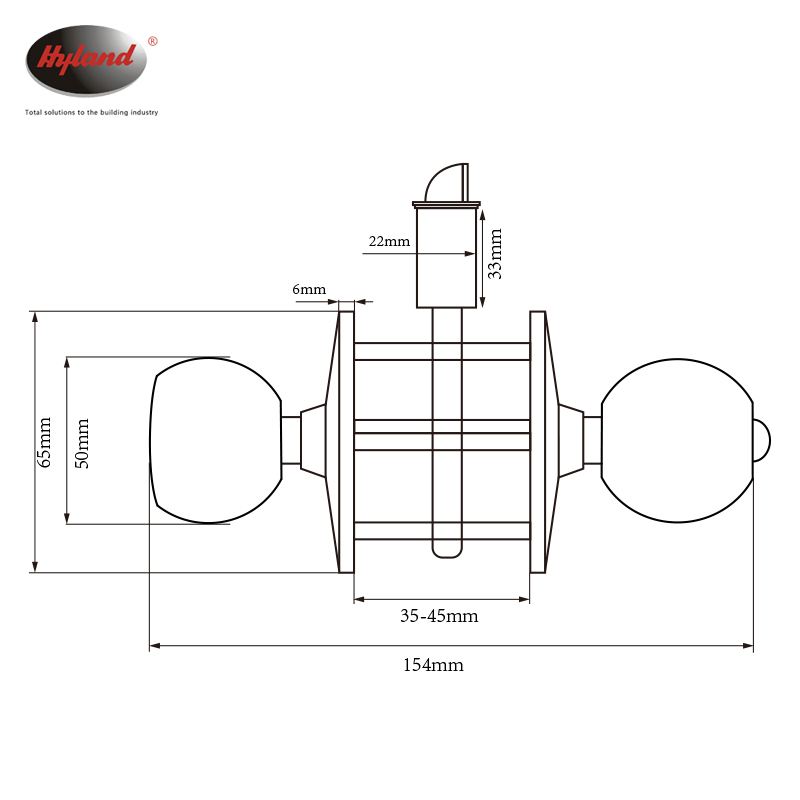

*  Door Thickness

  Adjustable 1-3/8＂to 1-3/4＂(35mm to 45mm)as standard..

*  Backset

  Adjustable backset 2-3/8＂or  2-3/4＂（60mm/70mm）as standard.

  Adjustable 1”round drive-in 4-way latch is available upon request.

  2-1/4＂(57mm) curved lip strike as standard.

  2-3/4＂(70mm) strike available upon request.

*  Handing

  Fully reversible for left or right hand door.
