MODEL: 311

Panic exit device

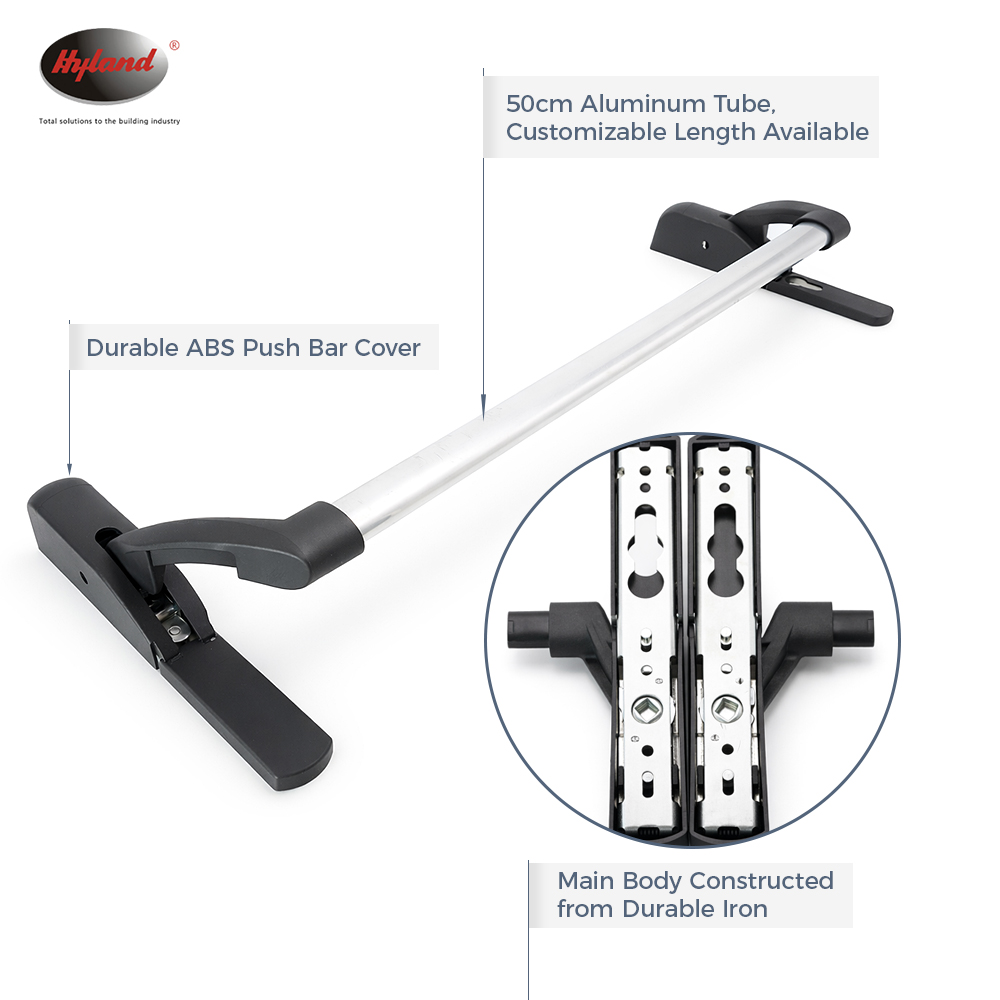

Material：ABS plastic material with Aluminum

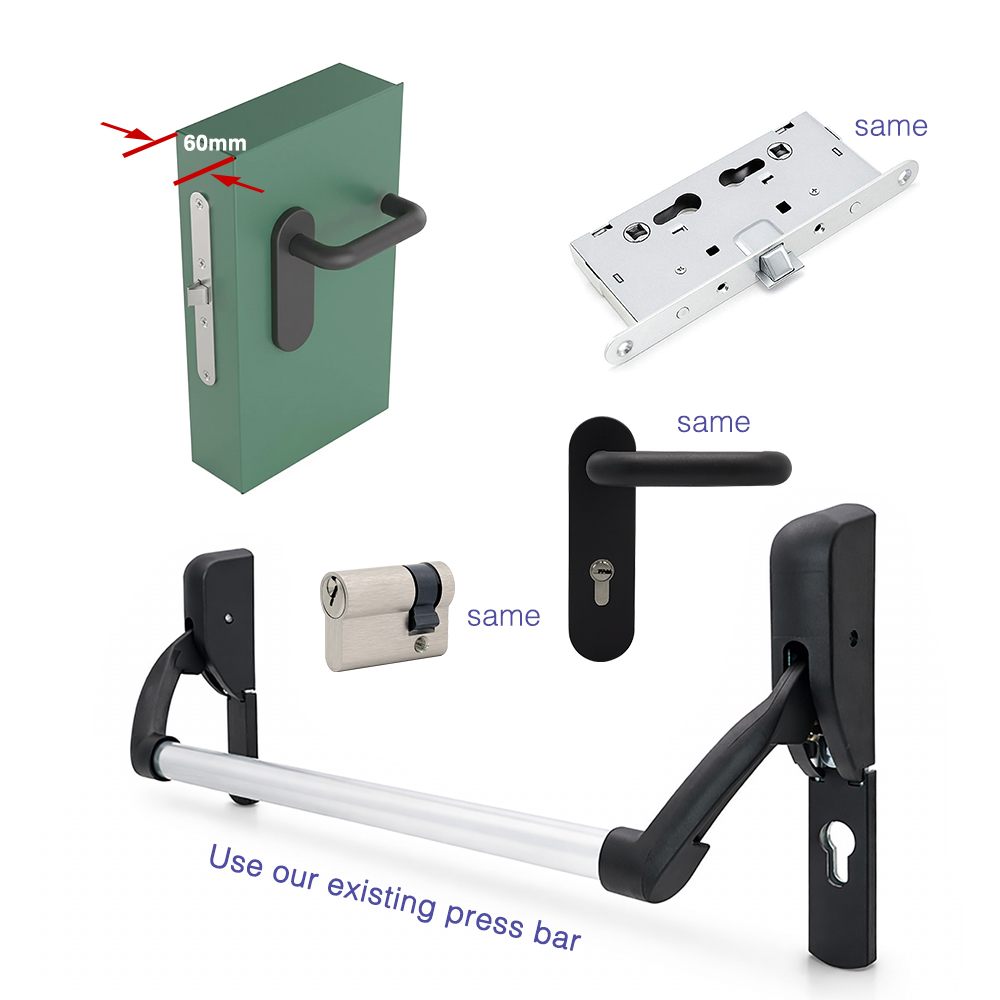

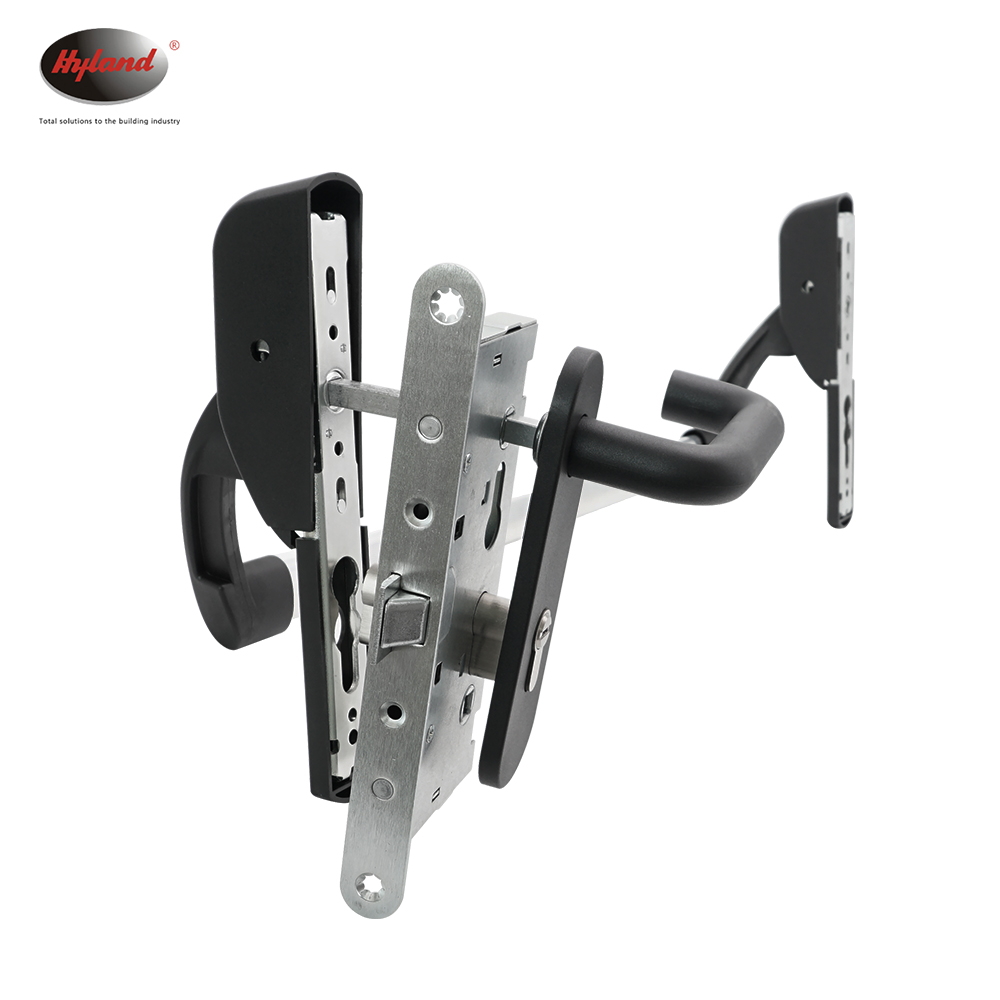

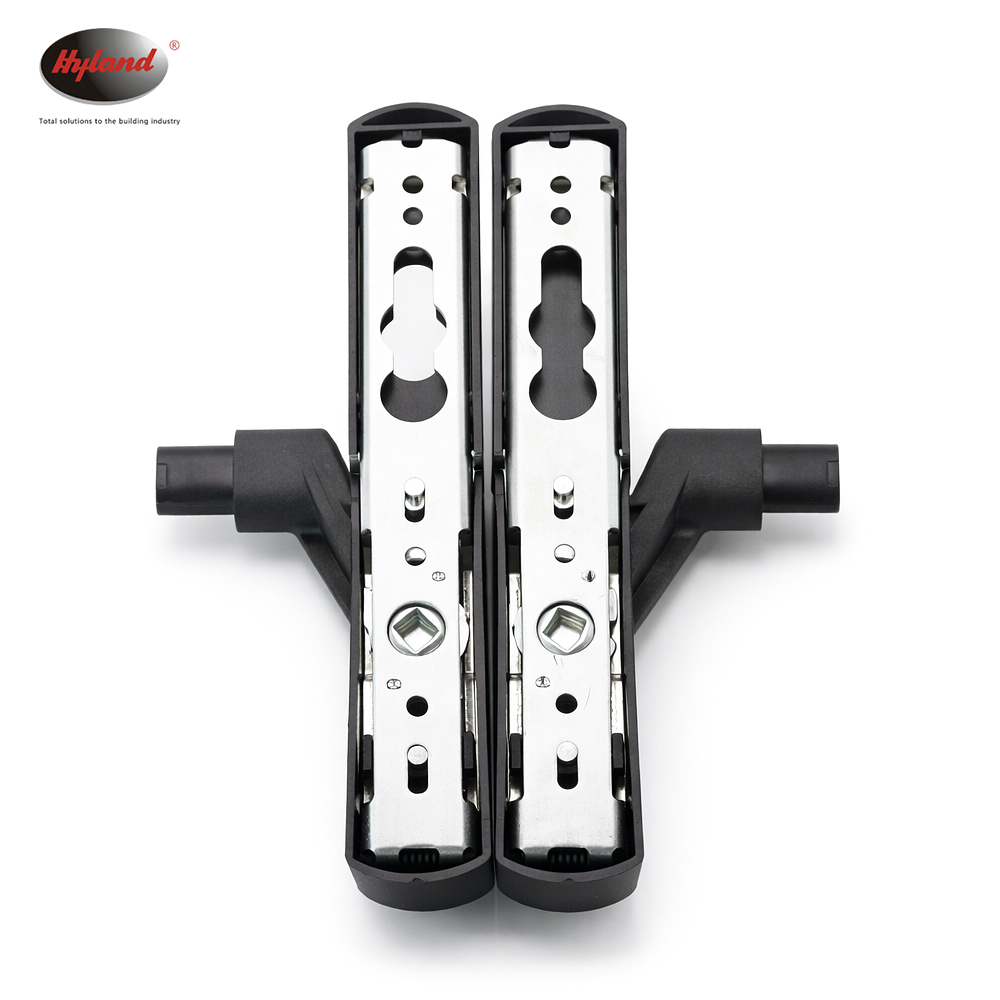

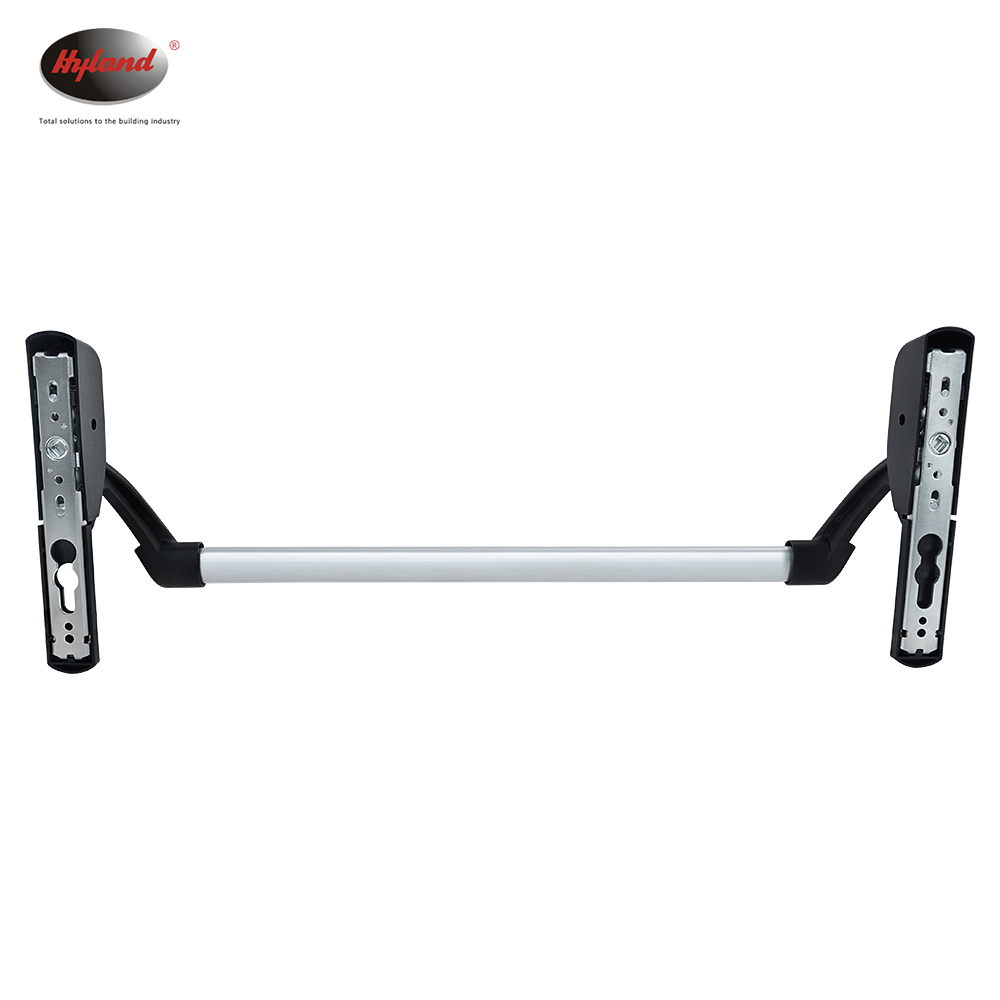

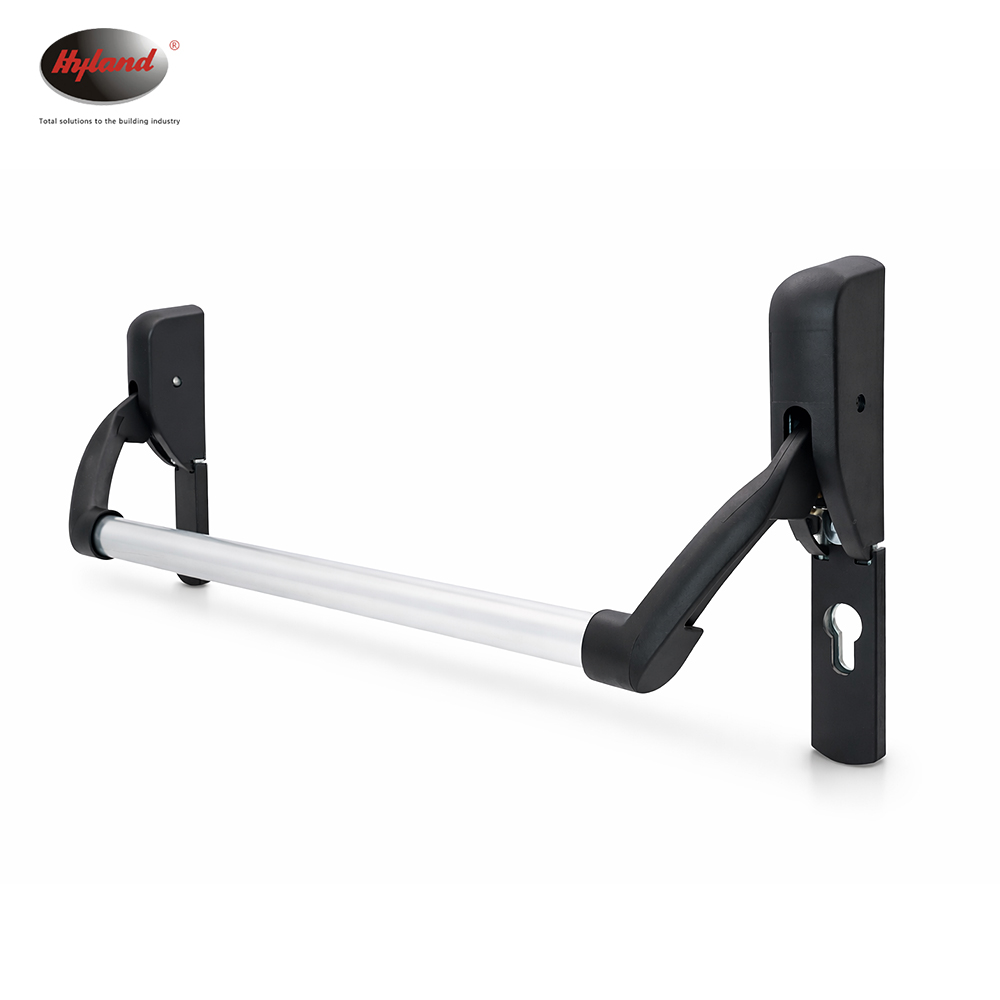

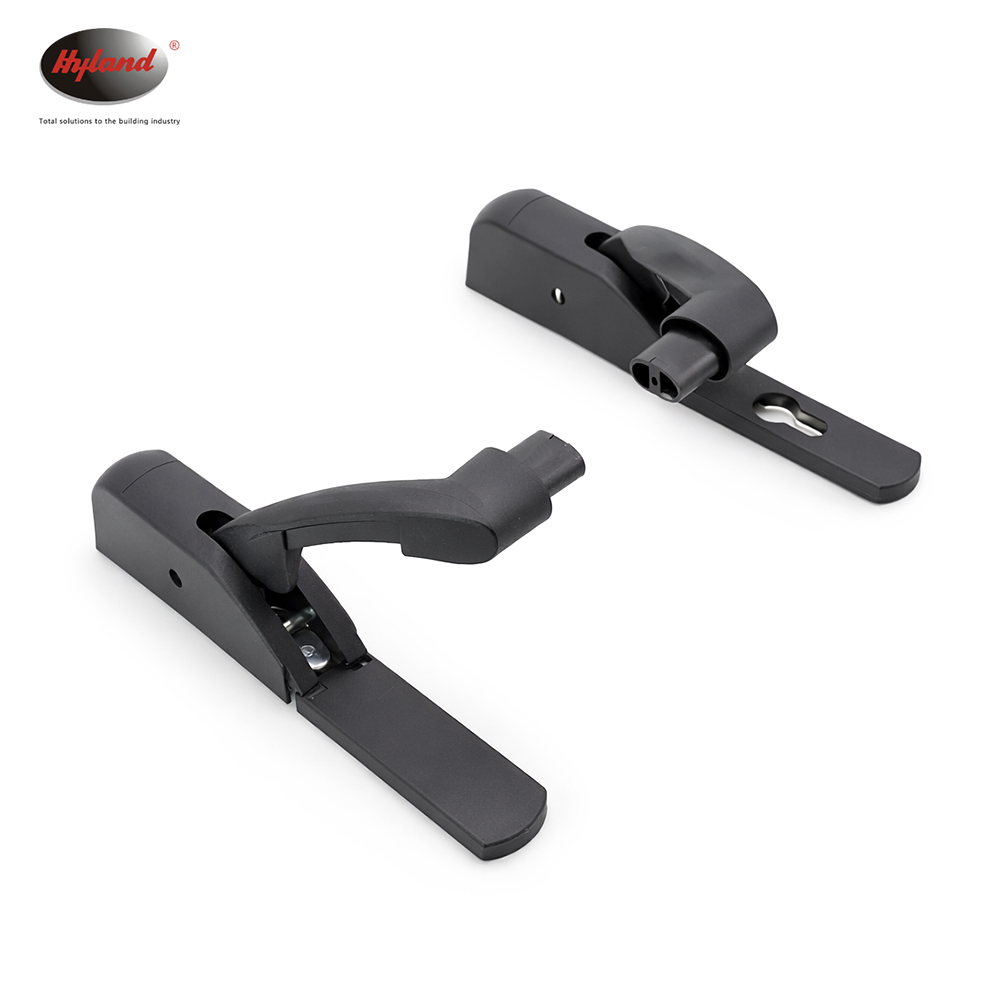

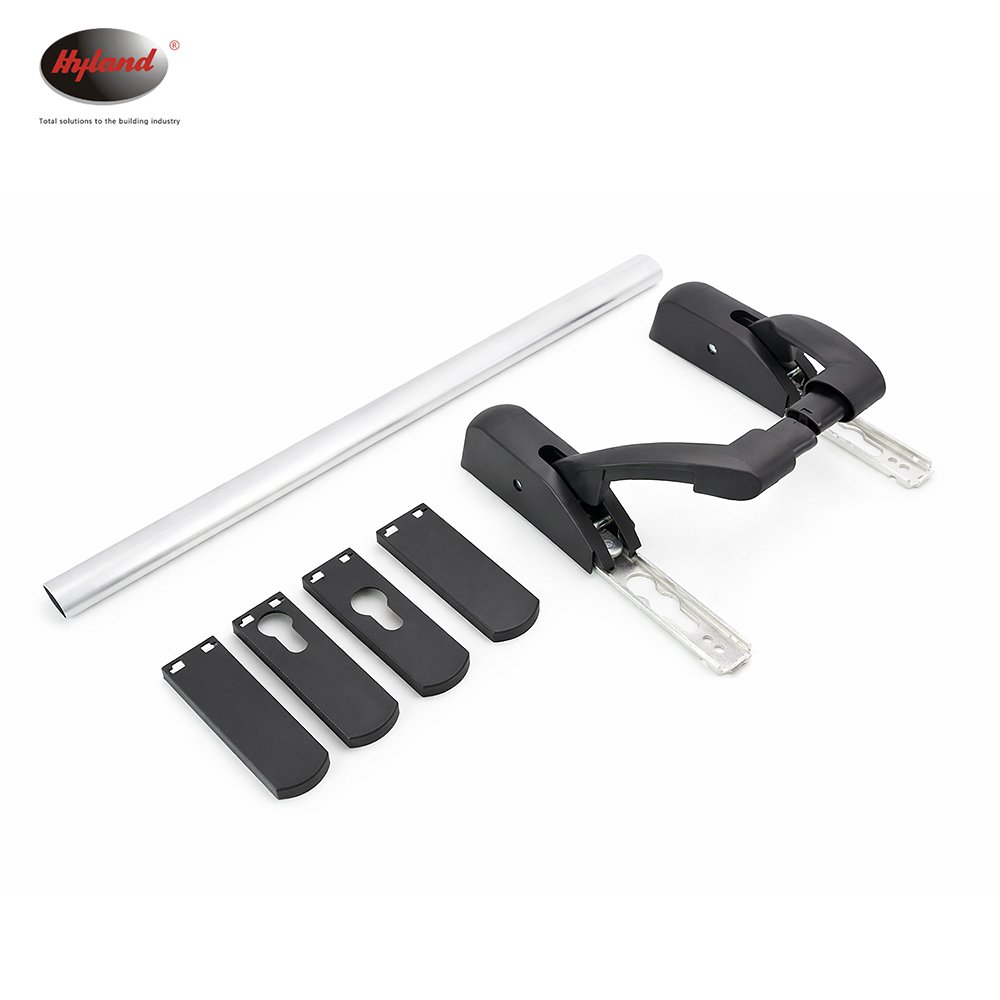

1.Below is the complete set of 311 push bar +lock body +brass cylinder +stainless steel handle.

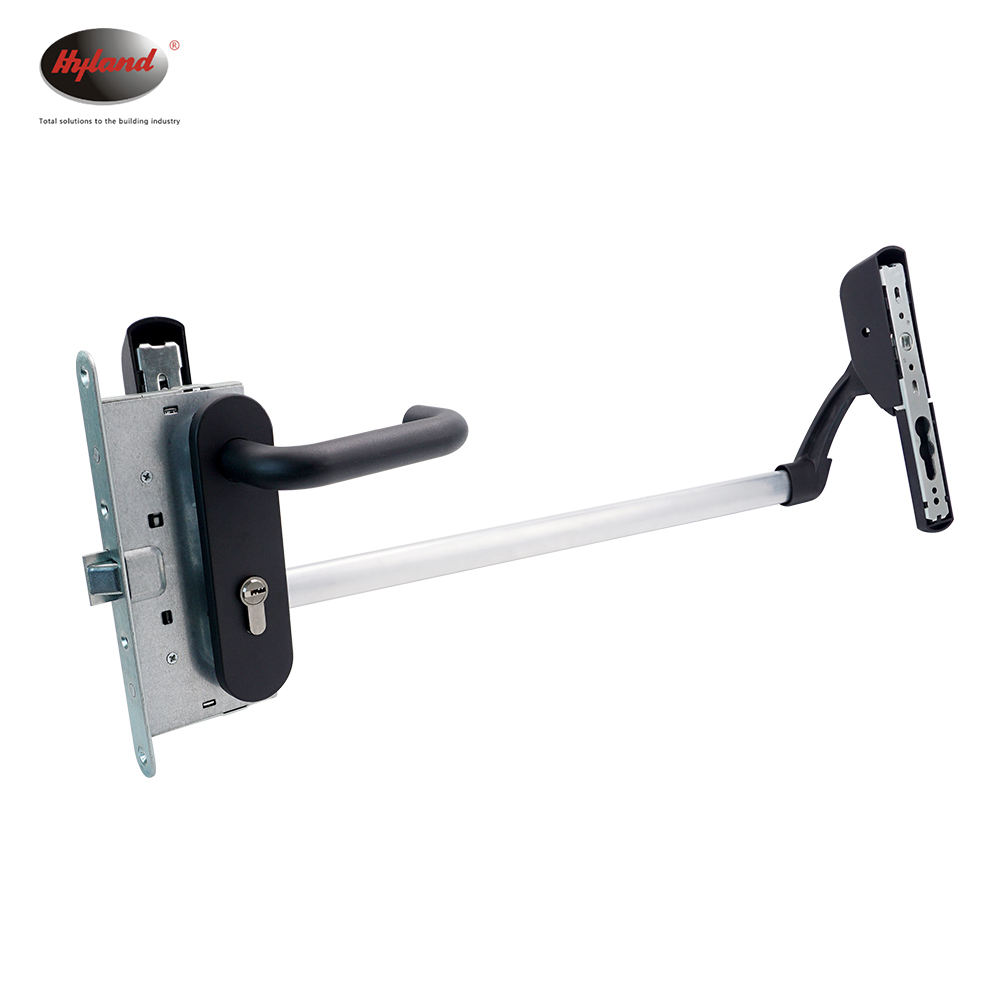

2.Panic exit device with push-bar combined with lock and counterlock.

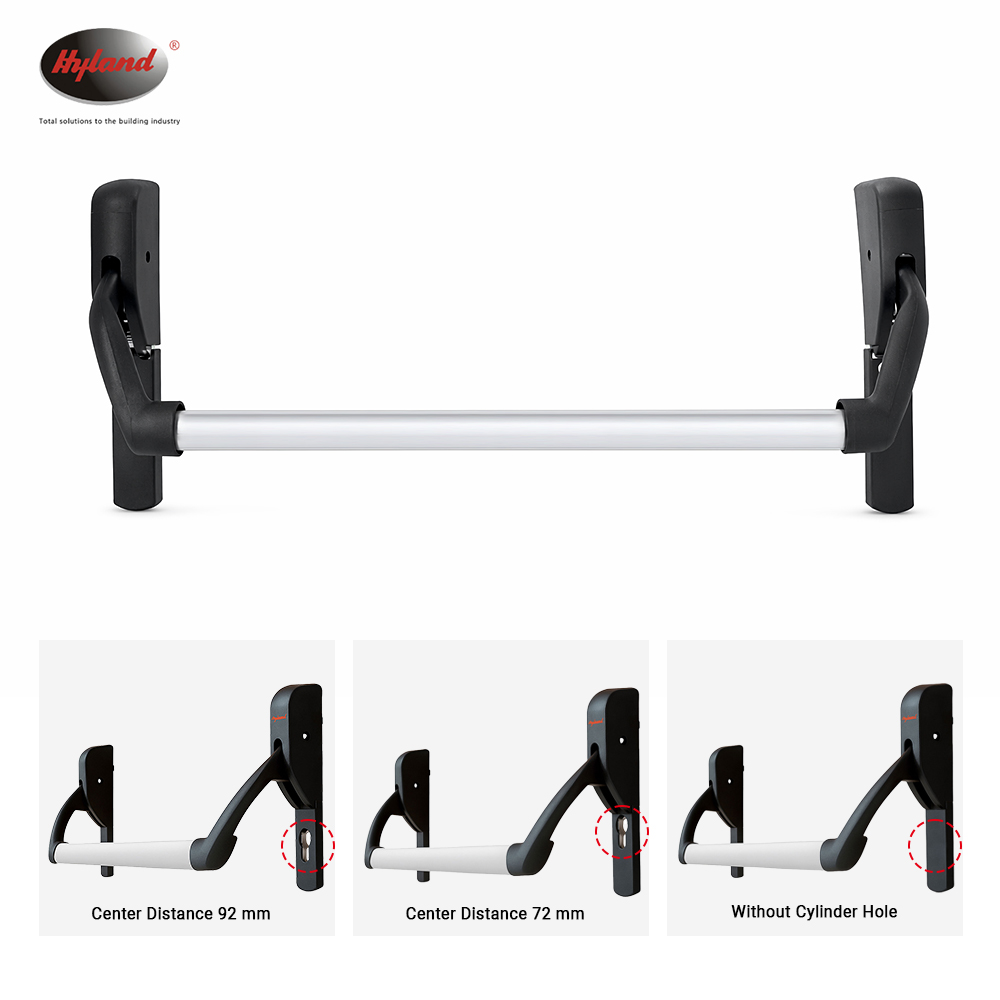

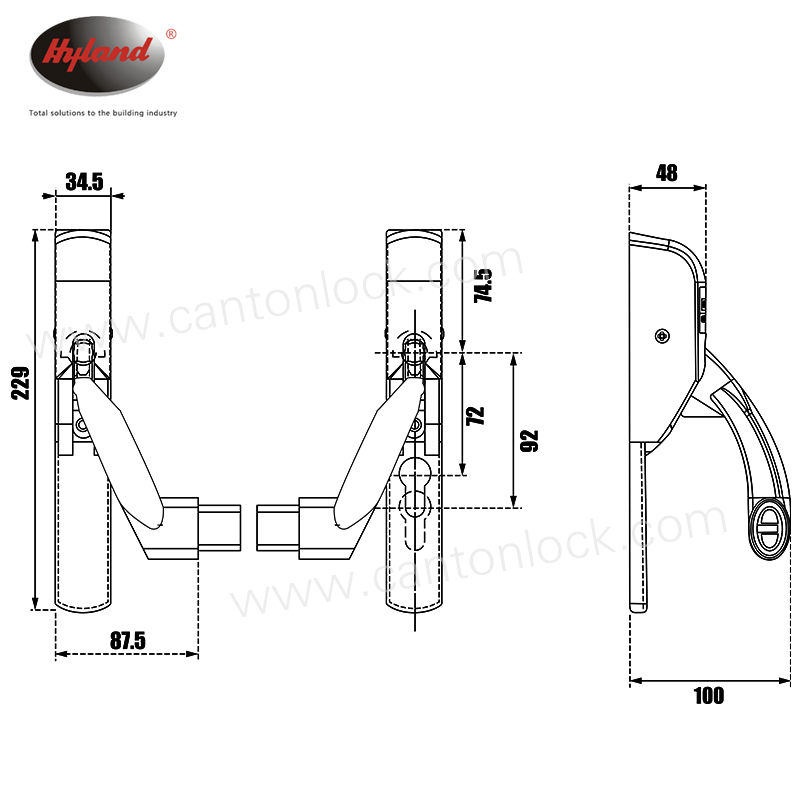

3.Device:Double center distance 72 mm and 92 mm Without cylinder hole.

4.Panic exit device can be fitted on doors, whether they are built in steel, aluminium or wood.

5.It is reversible and suitable for single or double glazed and unglazed doors; it is for use on hinged or pivotted door leaves only, with over 200 Kg. in mass, 2520 mm. in height and 1320 mm.in width.

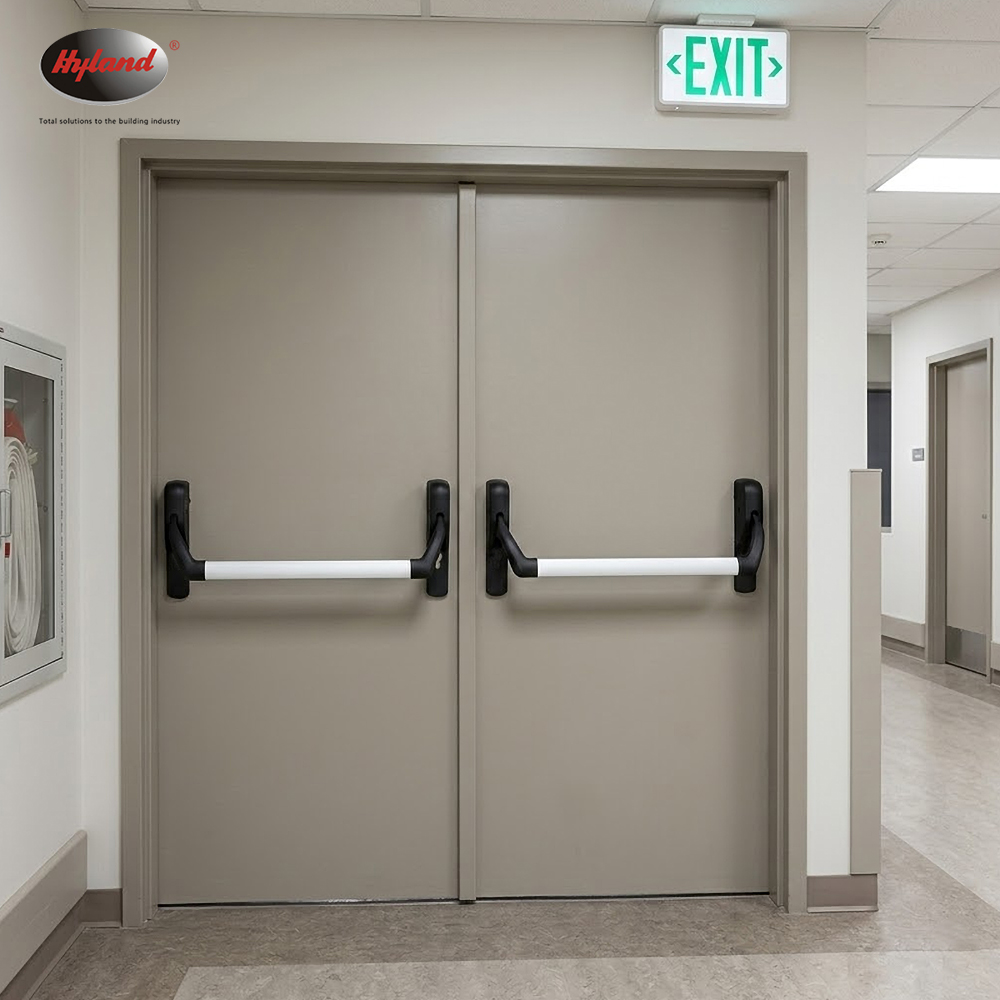

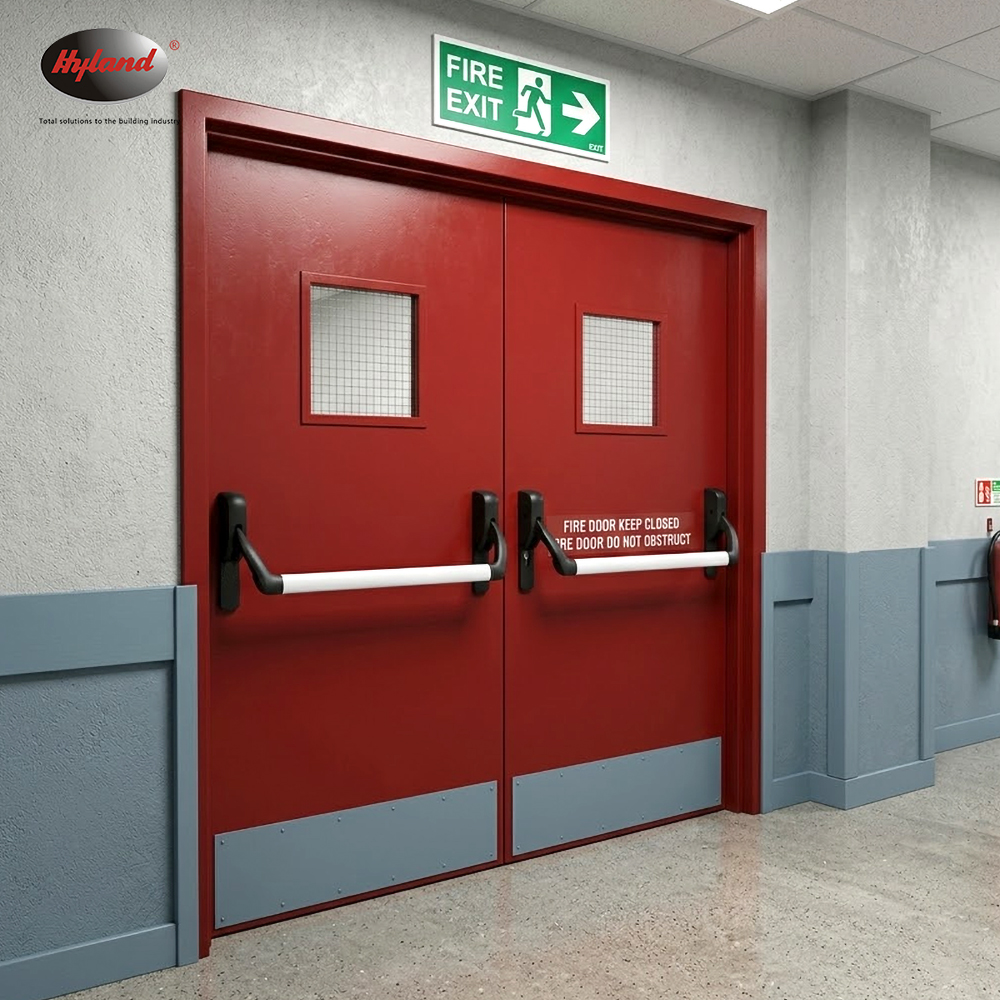

6.It is suitable for single leaf doors a fire doors.

7.Horizontal Bar:L=900MM

Multifunctional

1.Locks with key from both the inside and outside. Opens from the outside with key and handle. Opens from the inside with panic device.

2.Locks with key from the outside. Opens from the outside with key and handle. Opens from the inside with panic device.

3.Locks with key from the outside.Opens from the outside with key which retracts the latch bolt.Opens from the inside with panic device.
