Hyland 300
314 Alarm Panic Bar Exit Device
Model
314

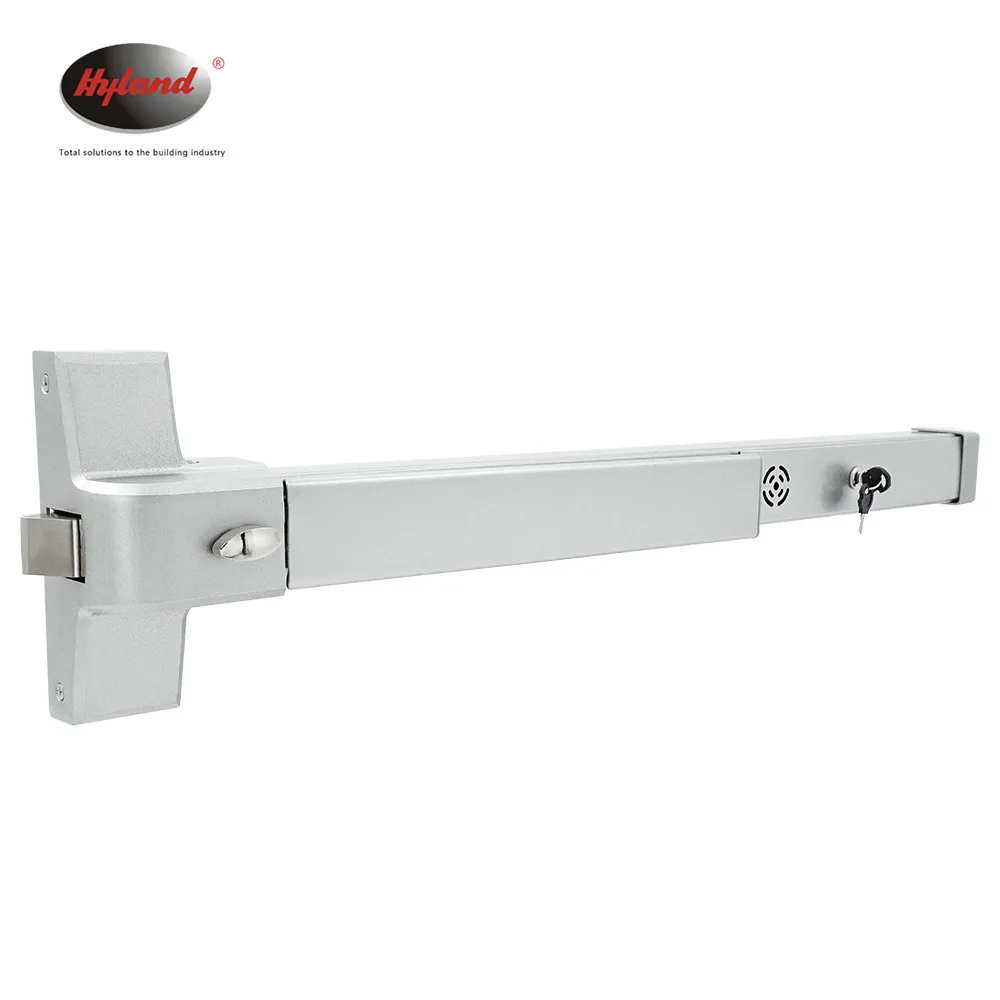

A push bar with an integrated exit alarm, for doors that must stay available for escape but not for casual use.
- Material
- Aluminium /Steel
- Door type
- Timber · Steel · Aluminium
Find 314 on our Alibaba storefront
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Color
- Silver or Customized

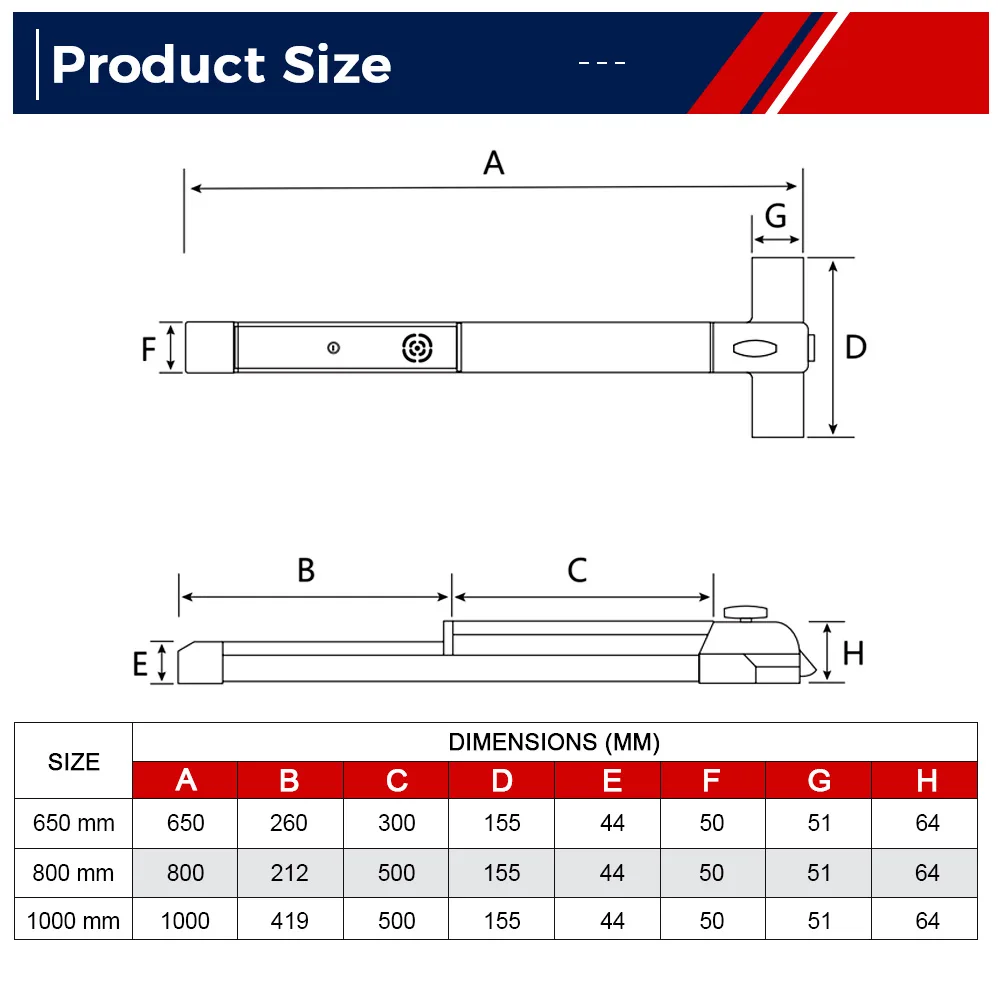

- Length
- 650mm / 800mm / 1000mm, Customizable
- Alarm Function
- Built-in Alarm Function
- Unlocking Method
- Key Access from Outside, Push Bar Exit from Inside
- Installation
- Surface-mounted, Horizontal Installation
- Application
- Fire Door, Exit Door, Steel Door, Public Access Door
- Optional Function
- External Lever Handle / Dogging Function
- OEM / ODM
- Available
Configuration
- Material
- Aluminium /Steel
- Available finishes
- Anodised Silver · Powder-Coated Black
- Suitable door types
- Timber · Steel · Aluminium
Standards and certifications
ISO 9001
ISO 9001:2015
Certification scope must be checked against the named model before specification.
Downloads
Datasheets, CAD files and installation instructions are available on request while the verified download library is being prepared.
